⑥Living/Learn Lighting Techniques/Natural/Dramatic
Lightning Concept
How does lighter color tones of Natural Taste affect lighting effect?
Daker tones of Modern Taste absorbs a lot of the light, so important to take material colors into lighting design considerations.
As you can see, lighter interior colors reflect more light.
Even with just downlights, the room appears brighter when compared to Modern Taste.
If the room is designed around darker color tones, it’s better to make the lighting plan a bit brighter.
Lightning Plan

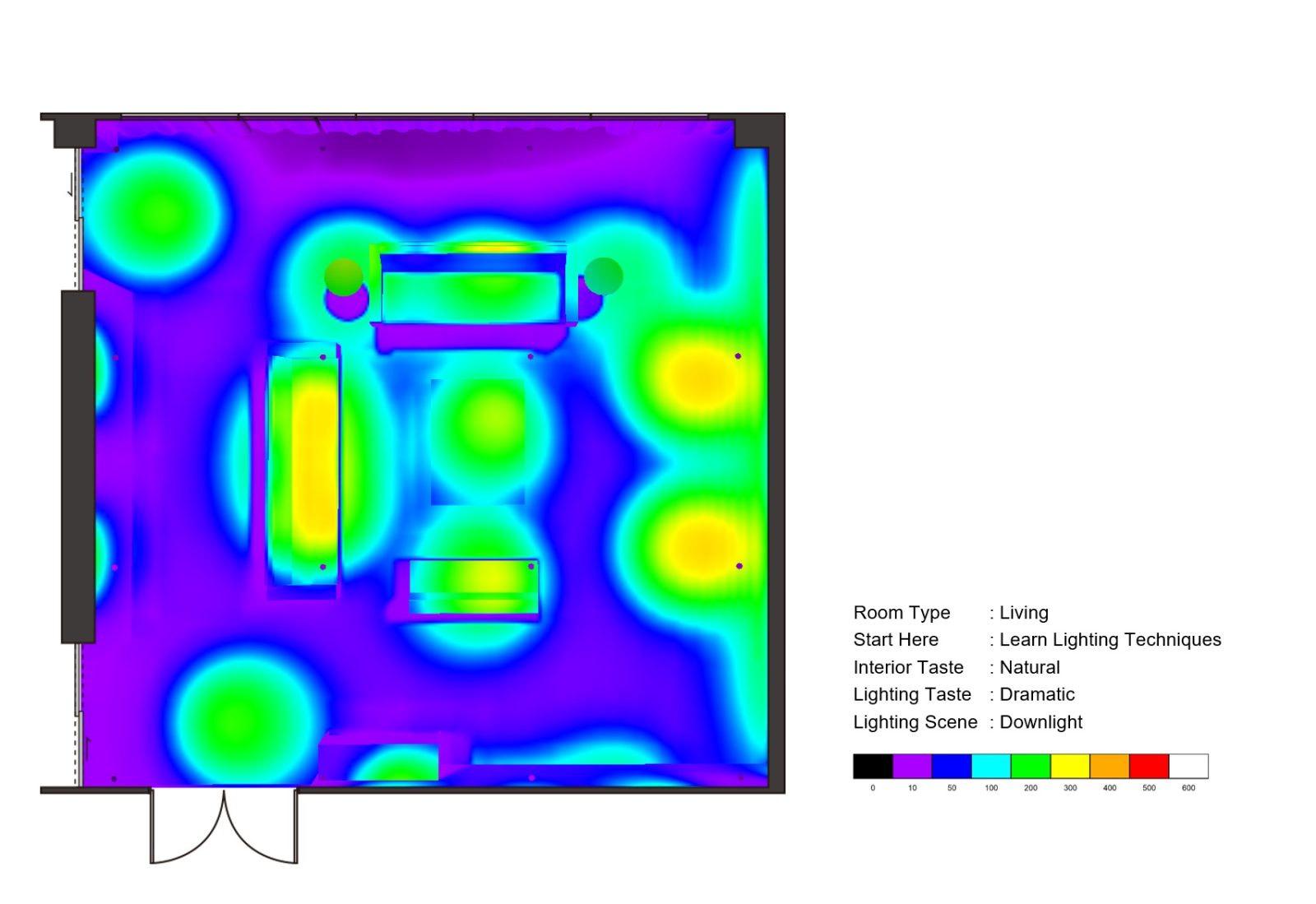

Just Downlights
With just 36°adjustable downlights, the lighting effect becomes spotty with noticeable pools of light.
Choosing the right beam angle is crucial for getting the desired lighting effect with downlights.

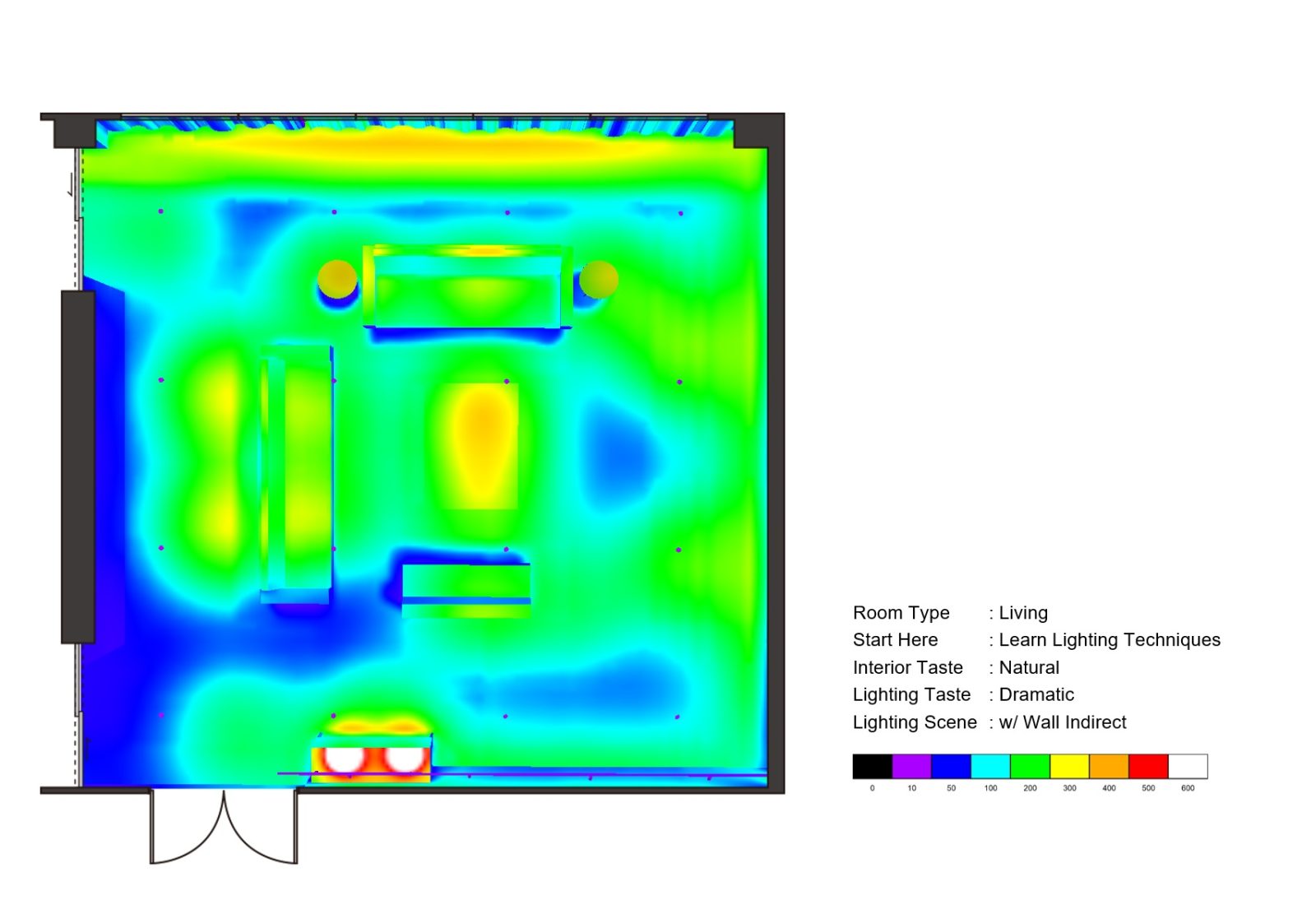

Downlights w/ Indirect Light on Walls
With 36°adjustable downlights and indirect lights along the wall, the room has a tame and comfortable contrast.
The gradient lighting effect on the wall gives a nice balance to the light distribution, and give a dramatic, hotel-like atmosphere.

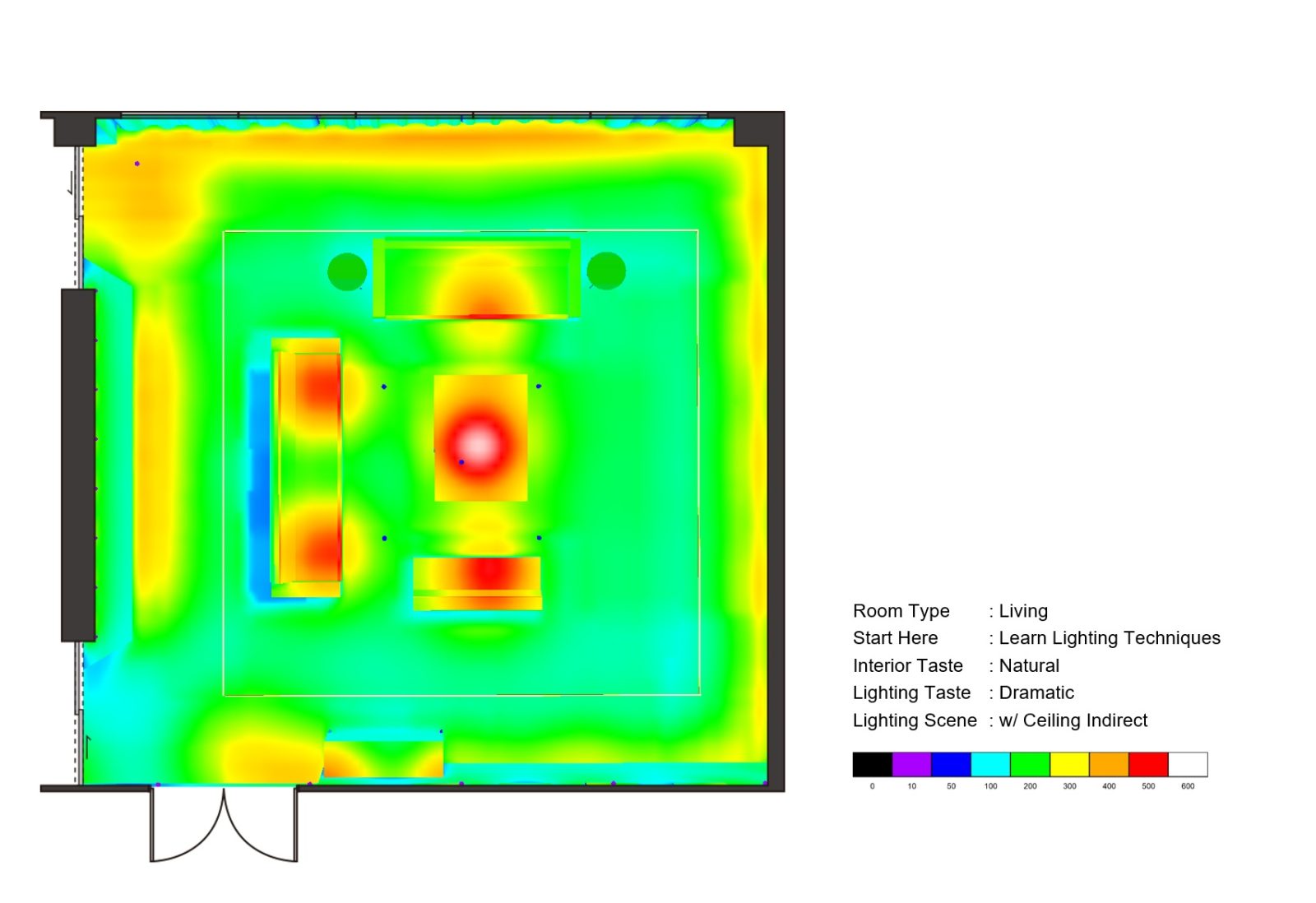

Downlights w/ Indirect Light on the Ceiling
Keeping the same lighting layout, the downlights are now changed to 26°adjustable downlights. Highlights on the furniture creates a sharp contrast.
It’s important to balance the brightness of the indirect lights to not create an extreme gap in brightness levels.
GLARE-LESS Downlight Adjustable Mirror - GERD9327WA-T_GRX467N-T
- Beam Angle : 34°
- Color Temperature : 3000K
- Color Rendering : 83 CRI
- Rated Lumen Output : 702 lm
GLARE-LESS SPOT MINI40 Track Spotlight - GERS7053B-T
- Beam Angle : 48°
- Color Temperature : 3000K
- Color Rendering : 83 CRI
- Rated Lumen Output : 738 lm

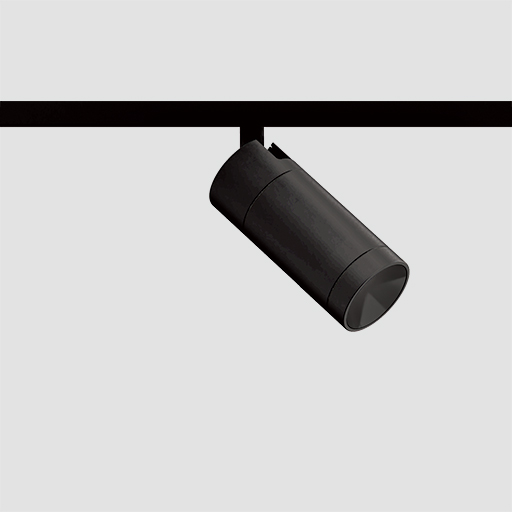

GLARE-LESS SPOT MINI40 Track Spotlight - GERS7050B-T
- Beam Angle : 13°
- Color Temperature : 3000K
- Color Rendering : 83 CRI
- Rated Lumen Output : 202 lm
LINEAR17 Indirect light - ERX9412S
- Beam Angle : 31×76°
- Color Temperature : 3000K
- Color Rendering : 82 CRI
- Rated Lumen Output : 1550 lm
LINEAR17 Indirect light - ERX9388S
- Beam Angle : 109×110°
- Color Temperature : 3000K
- Color Rendering : 82 CRI
- Rated Lumen Output : 1527 lm
GLARE-LESS Downlight Adjustable Mirror - GERD8519WA-T_GRX467N-T
- Beam Angle : 26°
- Color Temperature : 3000K
- Color Rendering : 83 CRI
- Rated Lumen Output : 749 lm
GLARE-LESS Downlight Adjustable Mirror - GERD9327WA-T_GRX467N-T
- Beam Angle : 34°
- Color Temperature : 3000K
- Color Rendering : 83 CRI
- Rated Lumen Output : 702 lm
GLARE-LESS Downlight Fixed/Adjustable Mirror - GERD9397W-T_GRX521N-T
- Beam Angle : 29°
- Color Temperature : 3000K
- Color Rendering : 93 CRI
- Rated Lumen Output : 265 lm
LINEAR17 Indirect light - ERX9412S
- Beam Angle : 31×76°
- Color Temperature : 3000K
- Color Rendering : 82 CRI
- Rated Lumen Output : 1550 lm
LINEAR17 Indirect light - ERX9388S
- Beam Angle : 109×110°
- Color Temperature : 3000K
- Color Rendering : 82 CRI
- Rated Lumen Output : 1527 lm
Lightning Detail

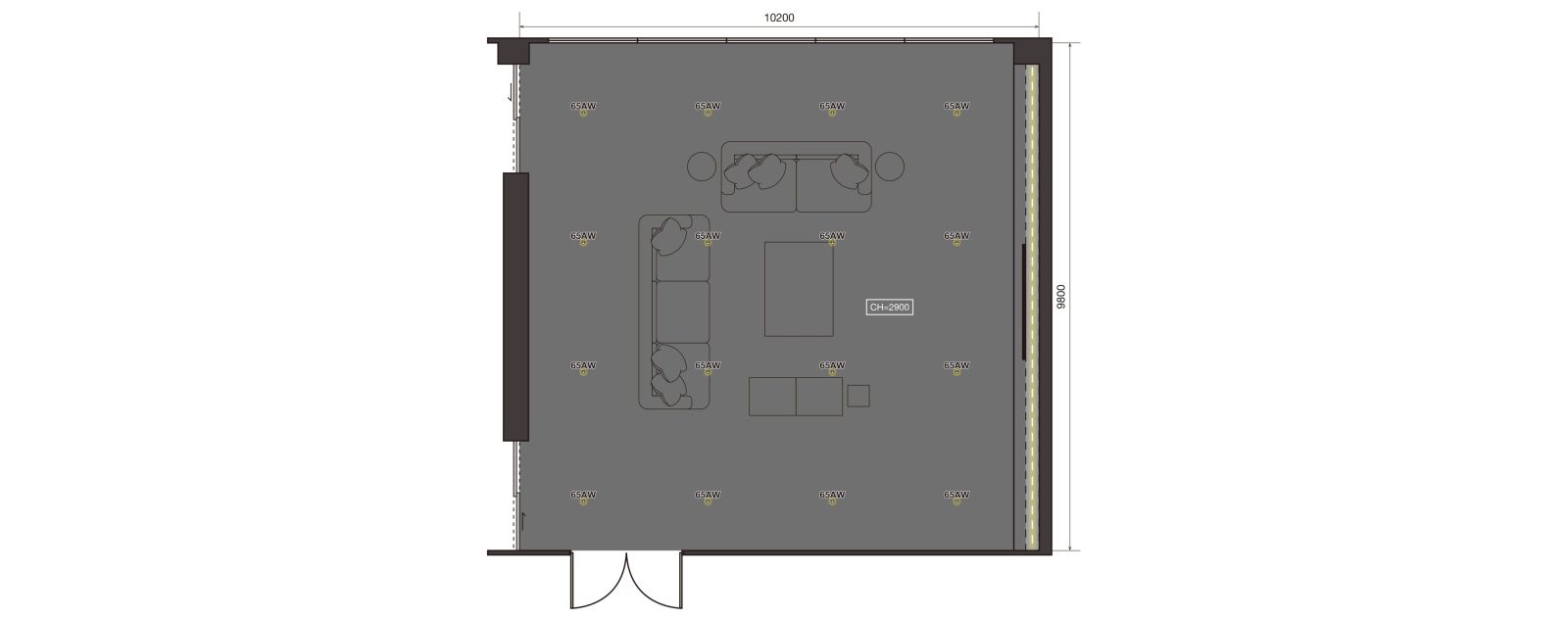

Just Downlights
Symbol : Product Code
65AW : GSTDA1000W-AW30_GRX466N-T
Just Downlights
Downlights w/ Indirect Light on Walls
Symbol : Product Code
50AW : GERD9327WA_GRX467N-T
40SW : GERS7053B-T
40N : GERS7050B-T
L17F : ERX9388S
L17R : ERX9412S
Downlights w/ Indirect Light on Walls
Downlights w/ Indirect Light on the Ceiling
Symbol : Product Code
50AW : GERD8519WA_GRX467N-T
50ASW : GERD9327WA_GRX467N-T
35W : GERD9397W-T_GRX521N-T
L17F : ERX9388S
L17R : ERX9412S
Downlights w/ Indirect Light on the Ceiling
