Bedroom/Circadian/Mood by Synca/

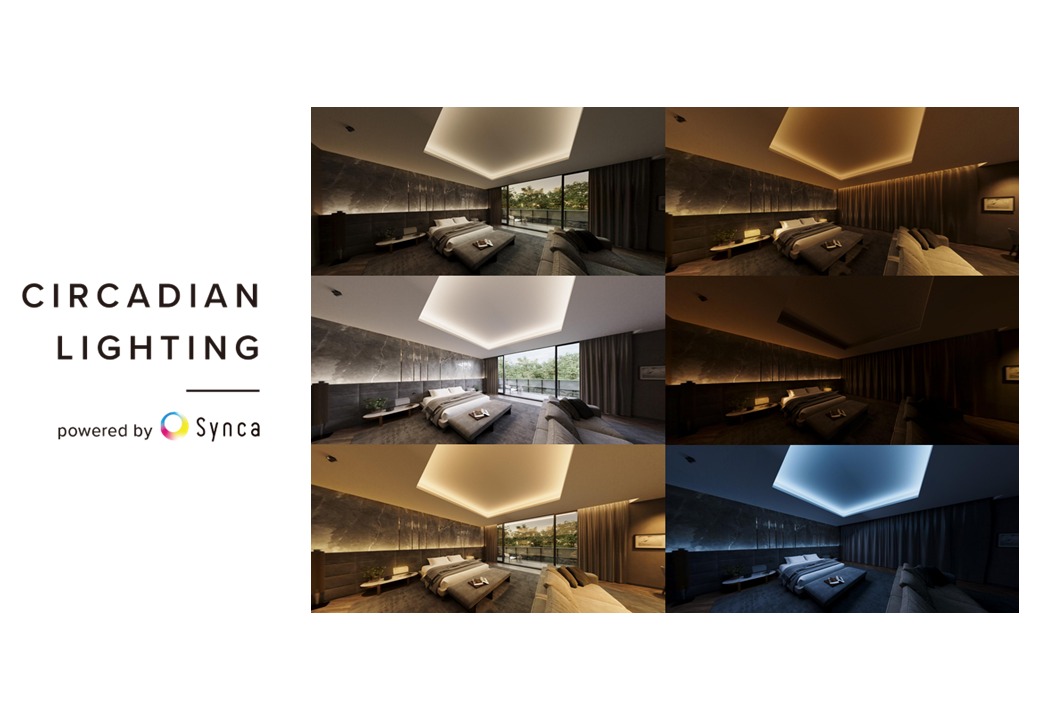

Lightning Concept
Close
Lightning Plan
Close

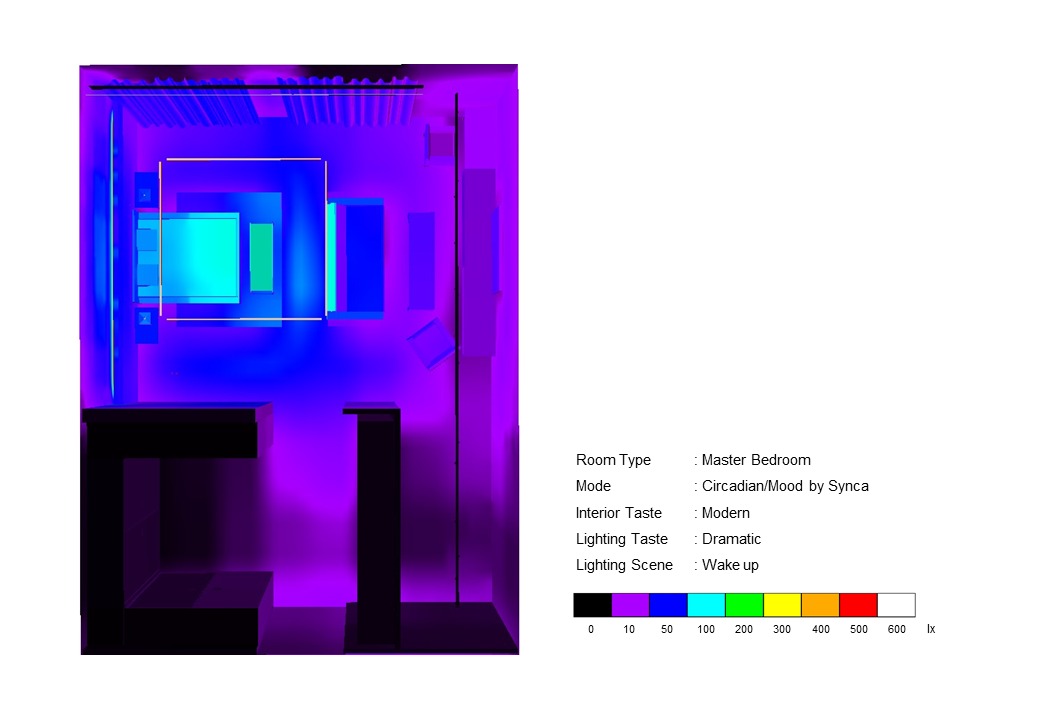

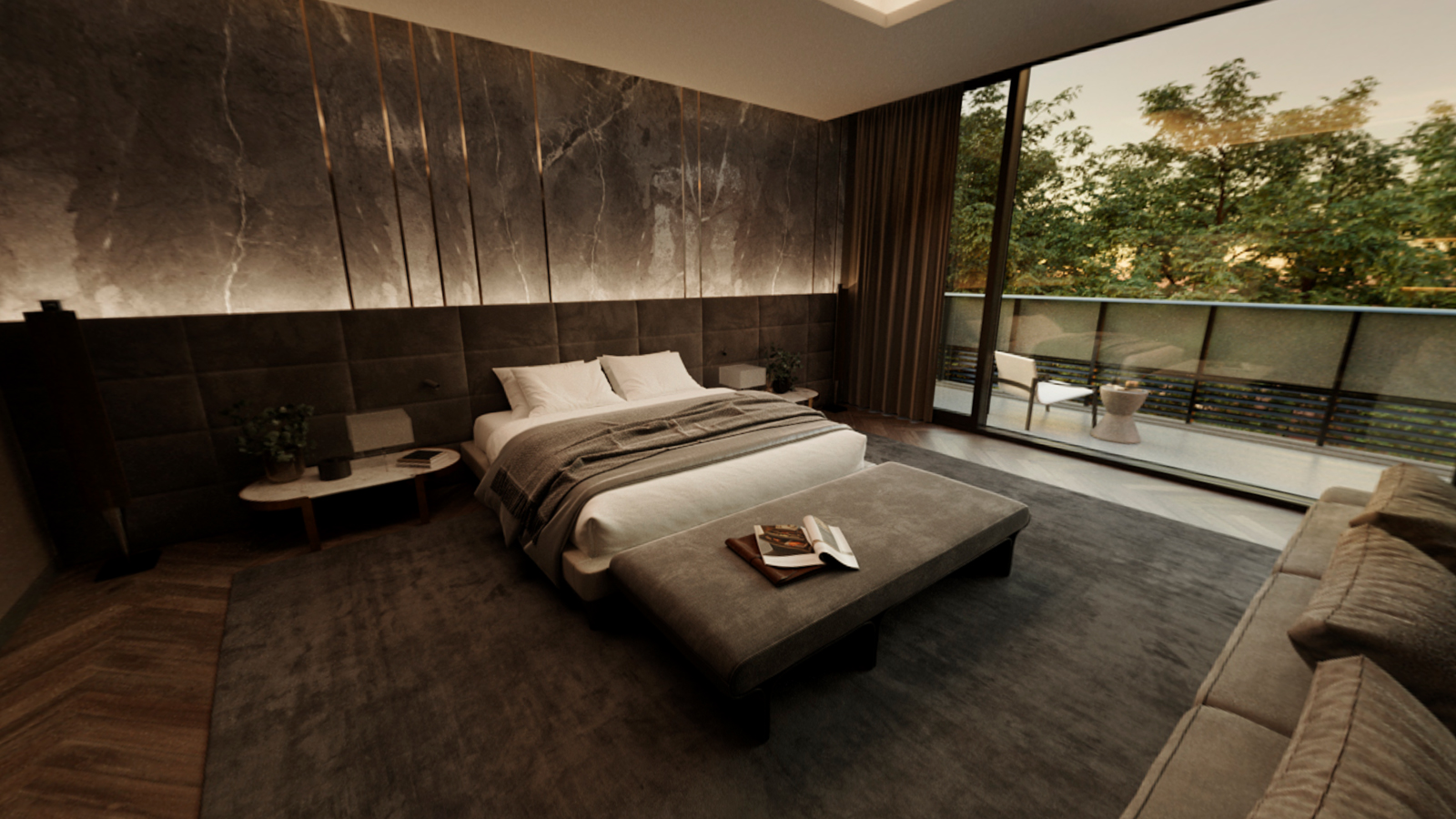

Wake up

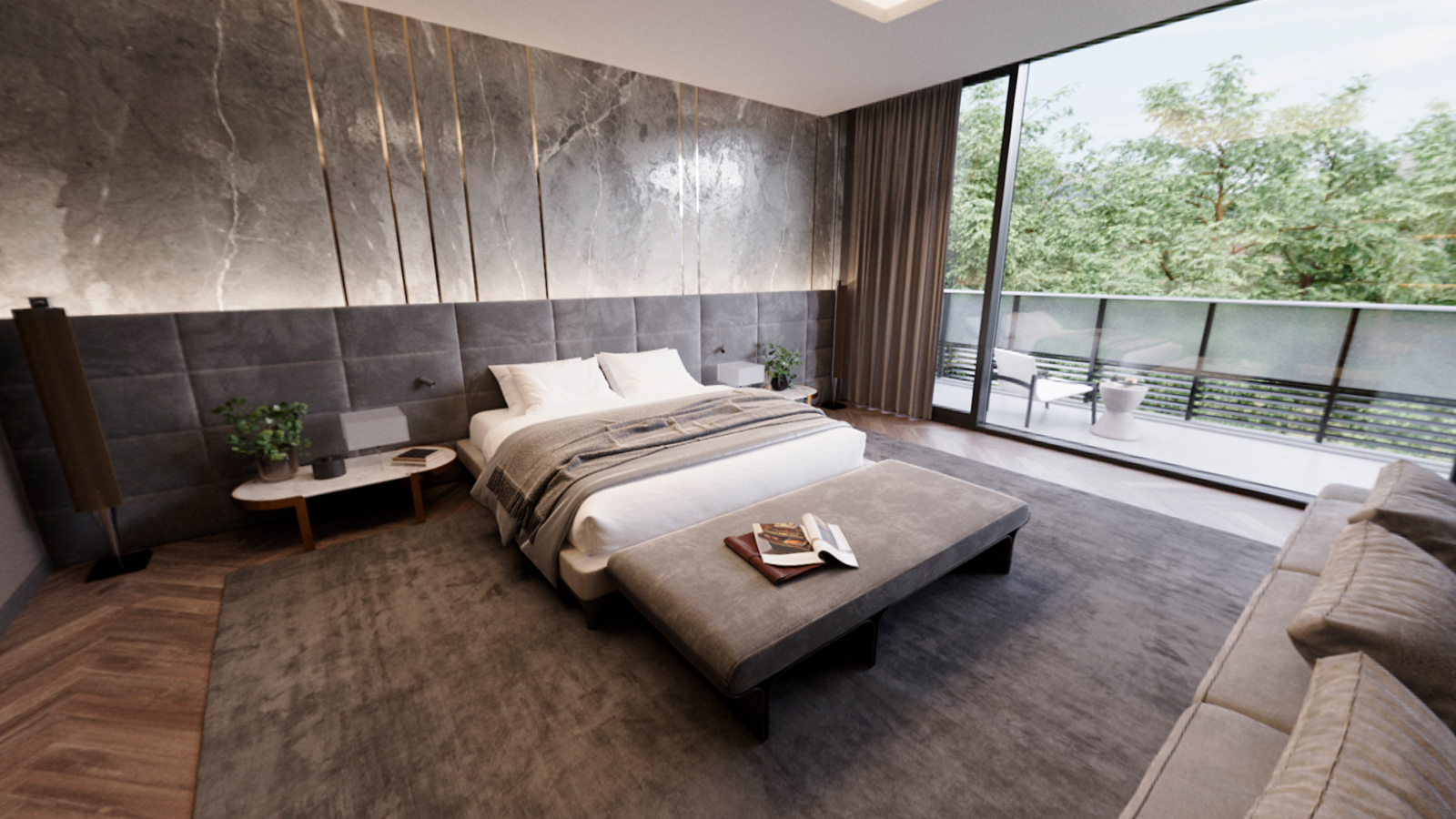

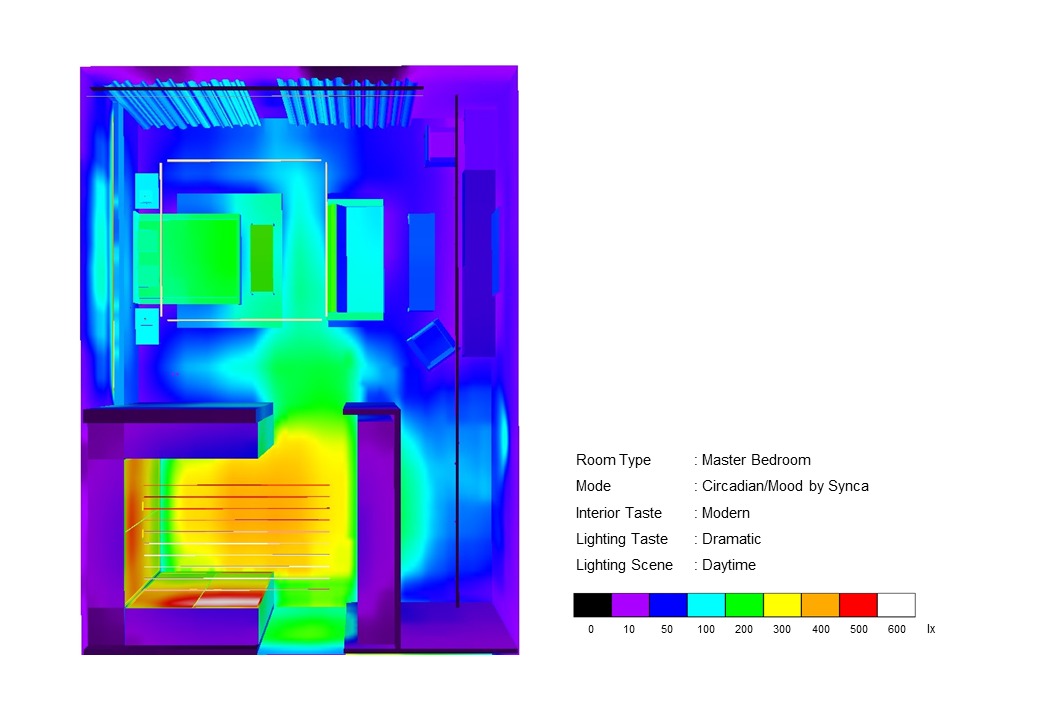

Daytime

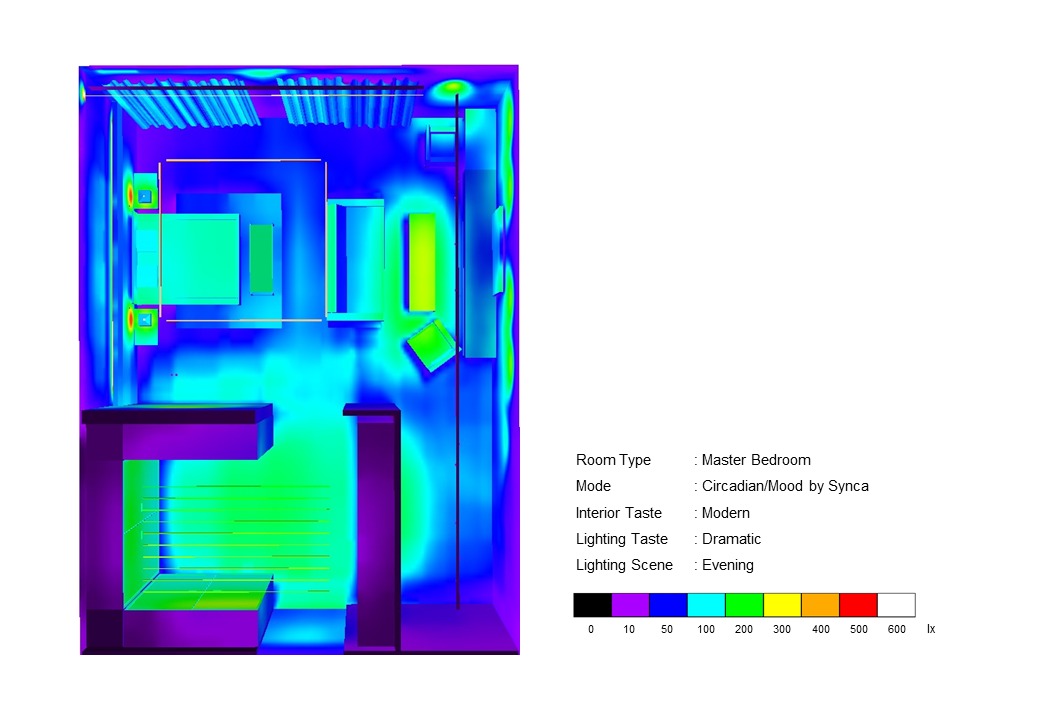

Evening

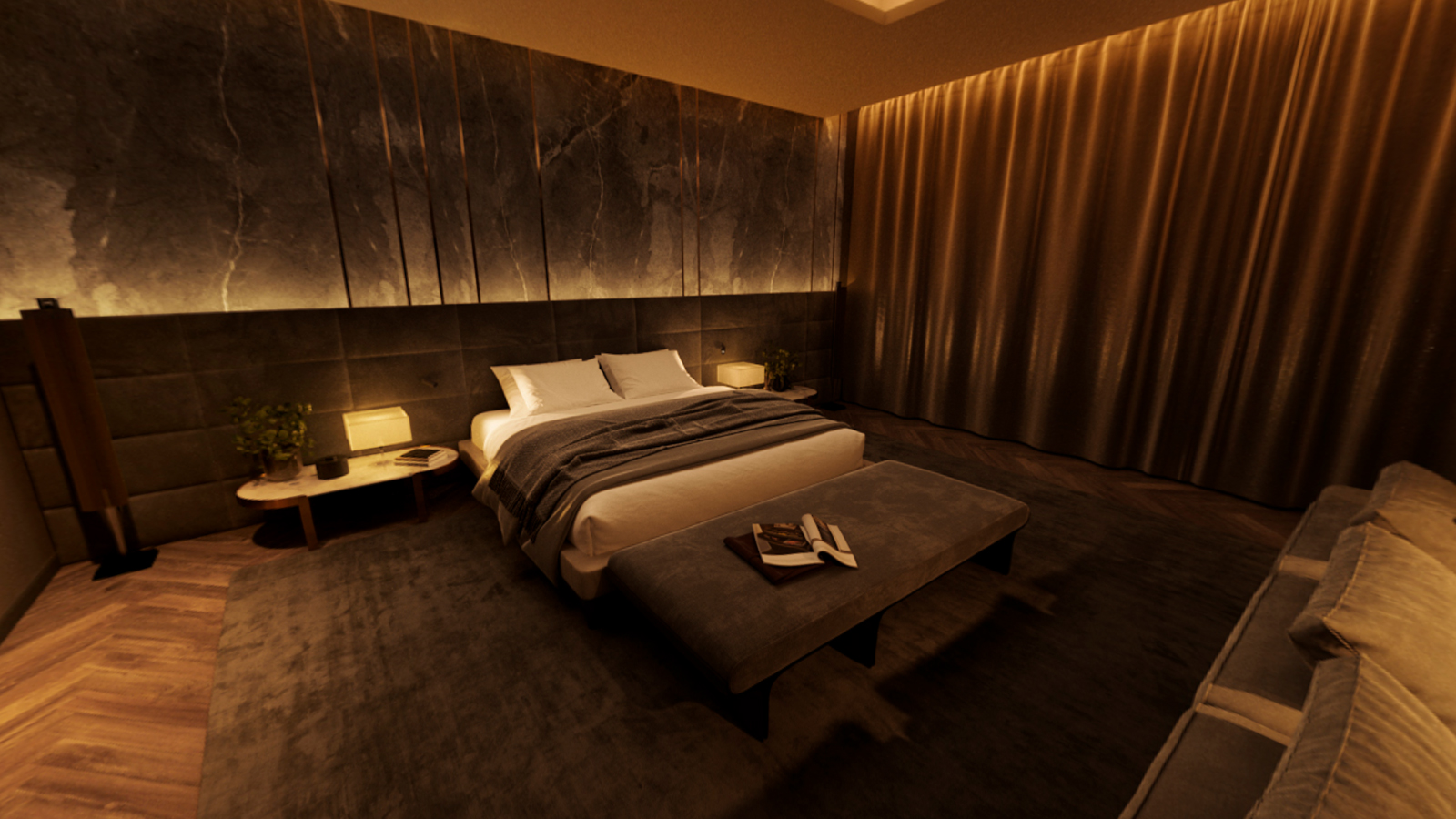

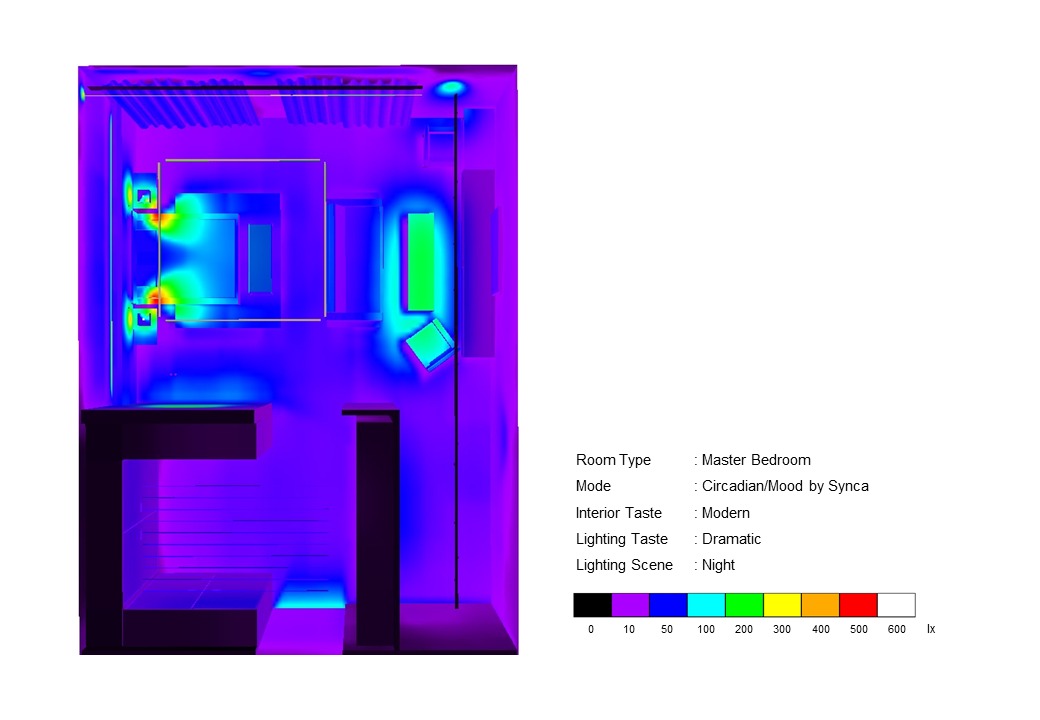

Night

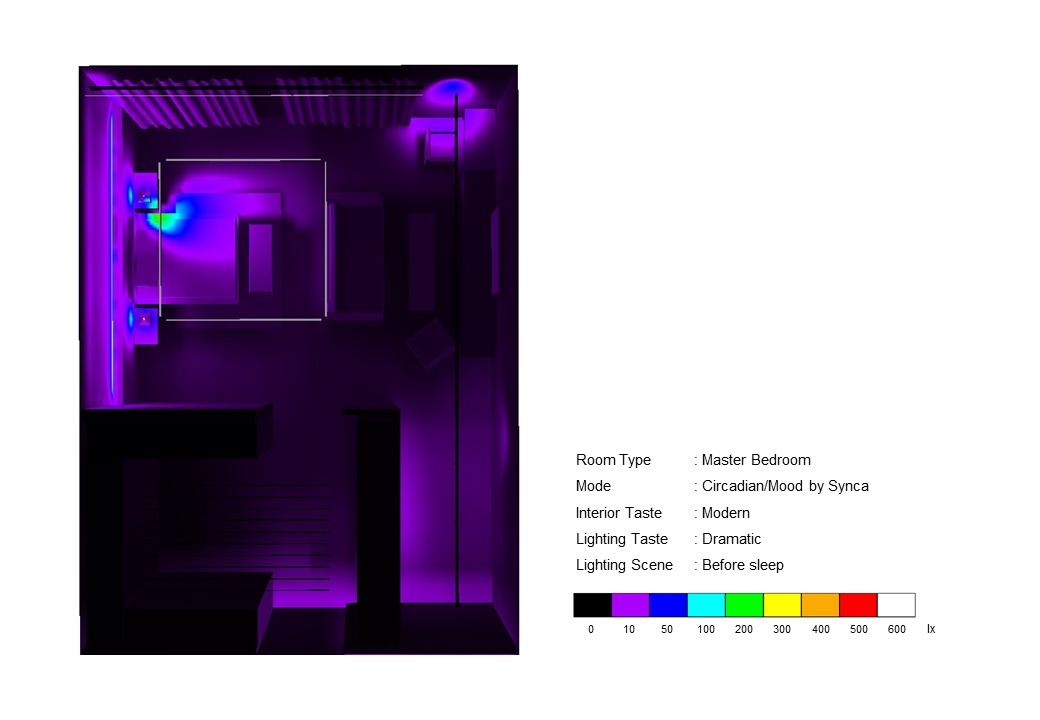

BeforeSleep

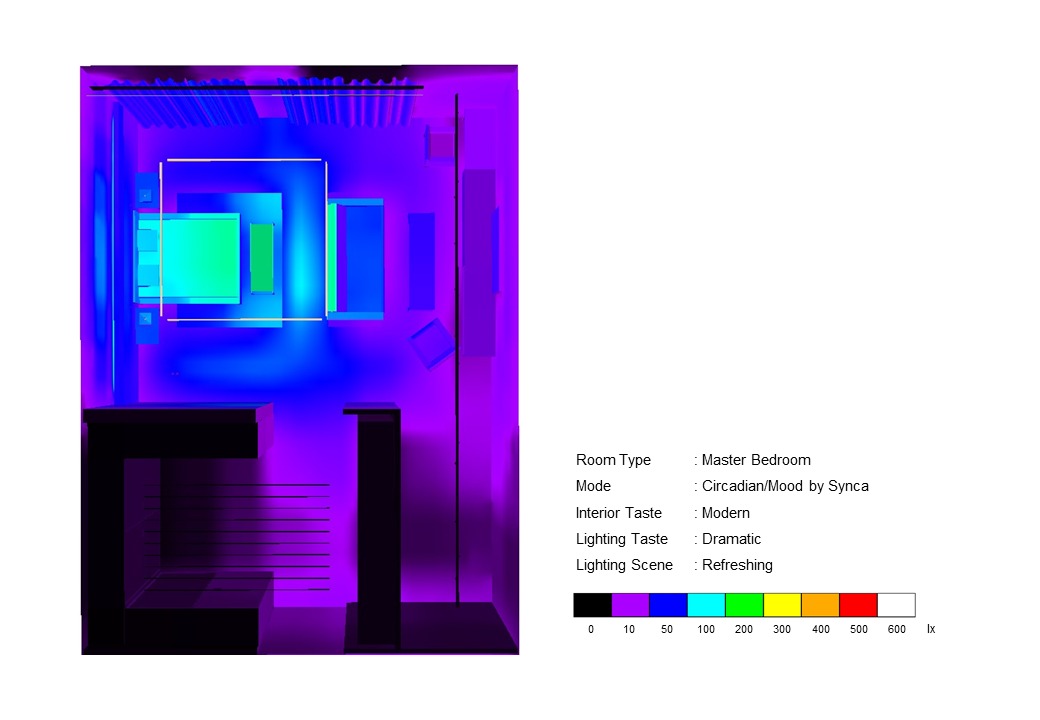

Refreshing
Scene 1 | Scene 2 | Scene 3 | Scene 4 | Scene 5 | Scene 6 | |
|---|---|---|---|---|---|---|
 | 3000K100% | 3000K | ||||
| 3000K100% | 3000K50% | 3000K20% | |||
| 3000K100% | 3000K70% | ||||
| 3000K100% | 3000K100% | 3000K30% | 3000K5% | ||
 | 3000K100% | 3000K80% | ||||
 | 3000K100% | 3000K50% | ||||
 | 3800K50% | 4500K80% | 3000K70% | 2500K30% | 2000K30% | 15% |
 | 3800K30% | 4500K70% | 3000K30% | 2500K15% | 50% | |
 | 3000K70% | 2500K30% | ||||
 | 4500K70% | 3000K30% | 3000K5% | |||
 | 3000K100% | 2500K70% | 2000K20% | |||
| 3000K100% | 2500K70% | 2000K20% |

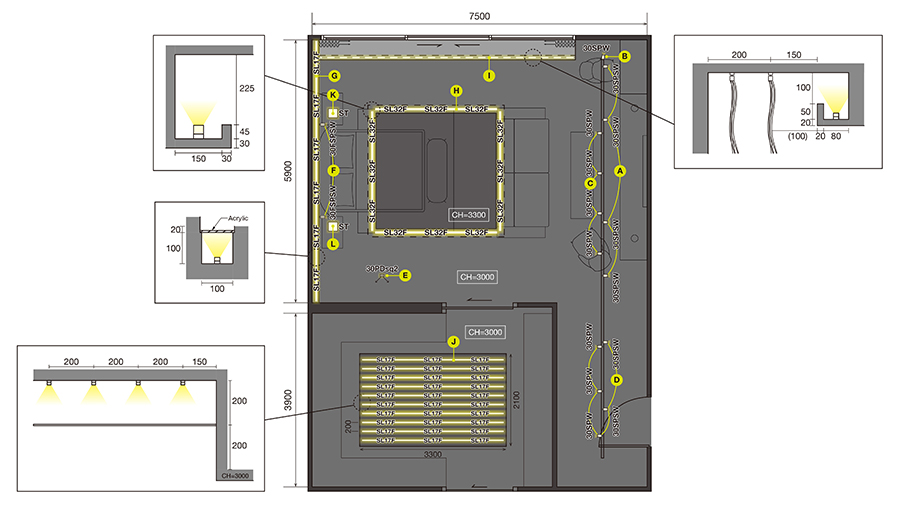

Lightning Detail
Close
Circuit :Product Code:
A :GERS7281B-T
B･C･D :GERS7280B-T
E :GERD9888B-T_GRX521N-T
F :GERS7269B-T_GRX521N-T
G :SXX9011M
H :ERK9708S_SAD404X

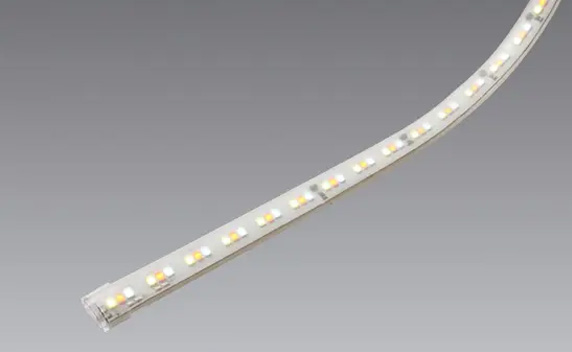

I :SXX9008X
Wakeup
Daytime
Evening
Night
Beforesleep
Refreshing

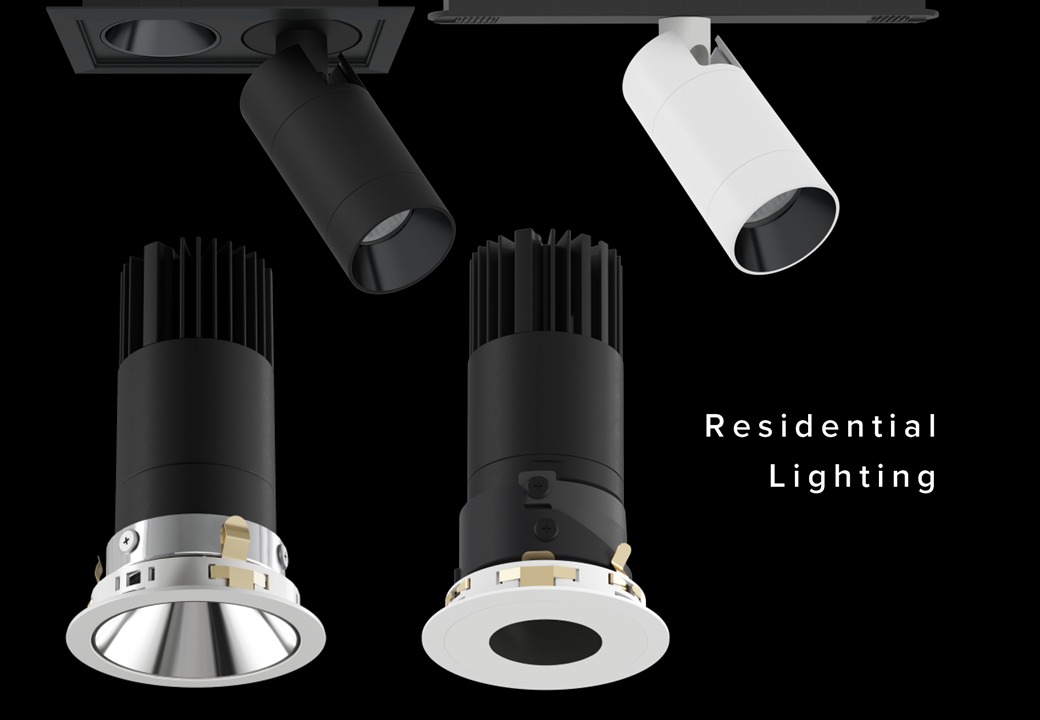

Products Used
Close
MINI30 track Spotlight - GERS7280B-T
- Beam Angle : 29°
- Color Temperature : 3000K
- Color Rendering : 93 CRI
- Rated Lumen Output : 265 lm
MINI30 track Spotlight - GERS7281B-T
- Beam Angle : 54°
- Color Temperature : 3000K
- Color Rendering : 93 CRI
- Rated Lumen Output : 279 lm
MINI30 Pulldown Spotlight Square 2units - GERD9888B-T_GRX480N-T
- Beam Angle : 29°
- Color Temperature : 3000K
- Color Rendering : 93 CRI
- Rated Lumen Output : 265 lm
MINI30 spot Recessed Flange type - GERS7269B-T_GRX521N
- Beam Angle : 54°
- Color Temperature : 3000K
- Color Rendering : 93 CRI
- Rated Lumen Output : 279 lm
Synca Linear32 Surface mount LED unit - ERK9708S_SAD404X
- Beam Angle : 136 x 105°
- Color Temperature : 12000K-1800K
- Color Rendering : 92 CRI
- Rated Lumen Output : 3000 lm

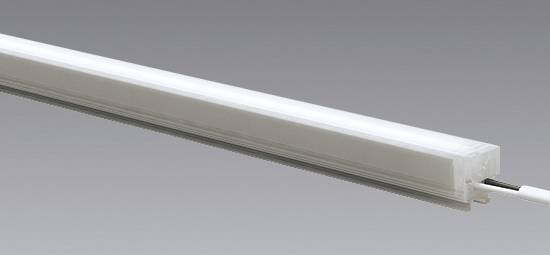

Synca Linear17 Outdoor Indirect light - SXX9011M
- Beam Angle : 153 x 107°
- Color Temperature : 12000K-1800K
- Color Rendering : 92 CRI
- Rated Lumen Output : 914 lm
