Bedroom/Learn Lighting Techniques/Dramatic
Lightning Concept
Close

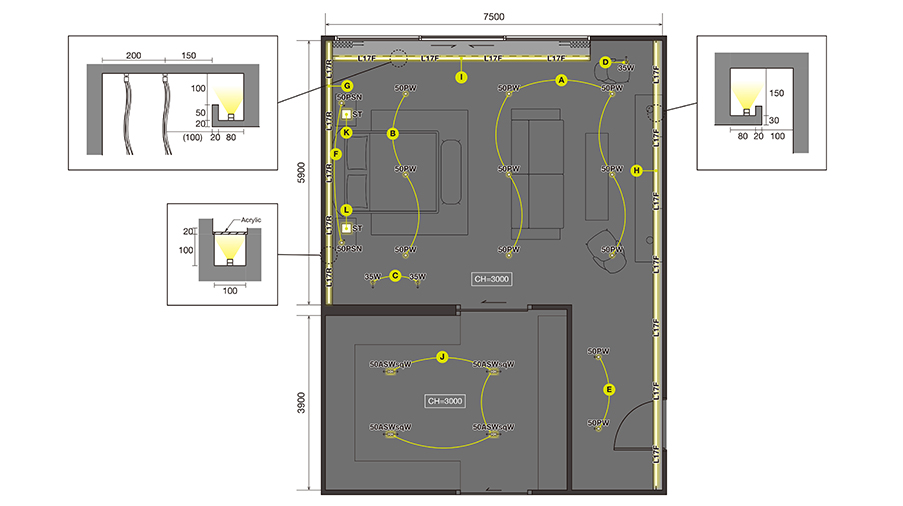

Lightning Plan
Close

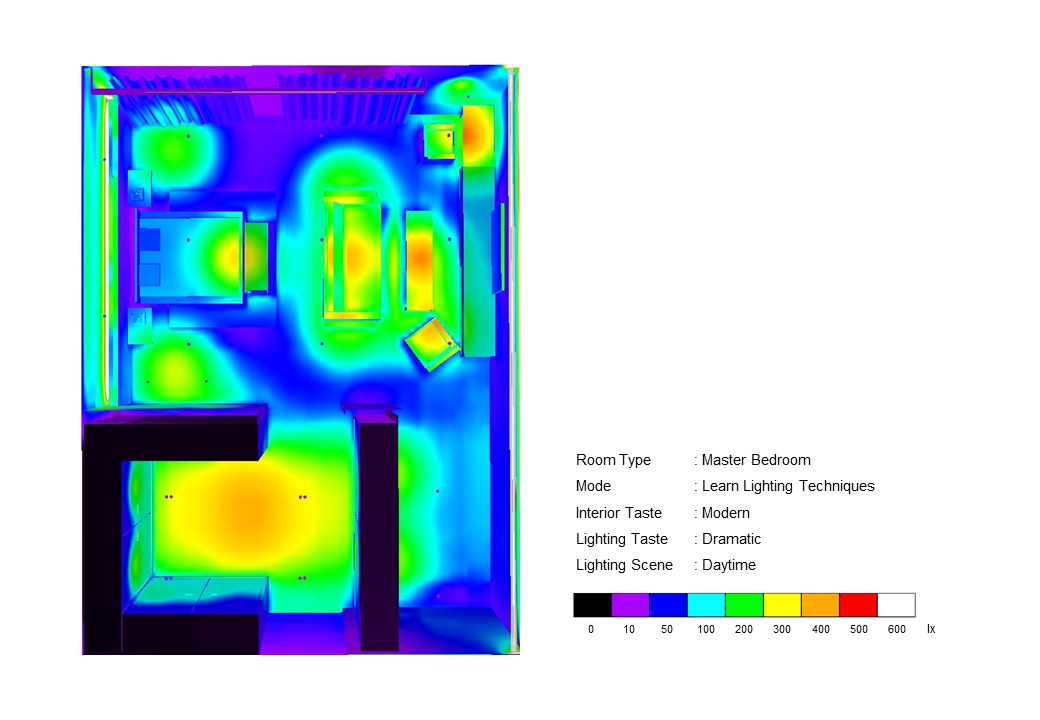

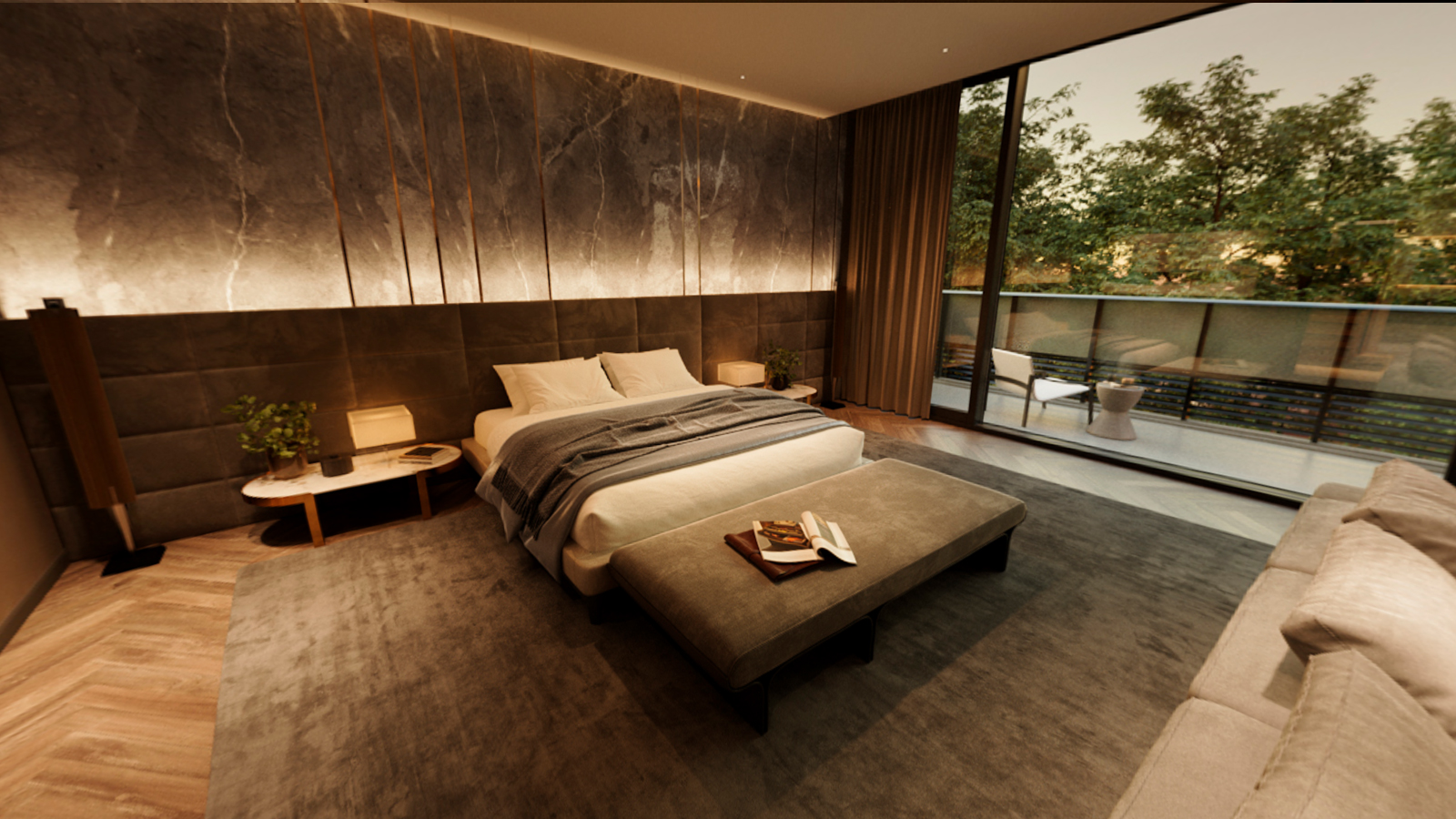

Daytime

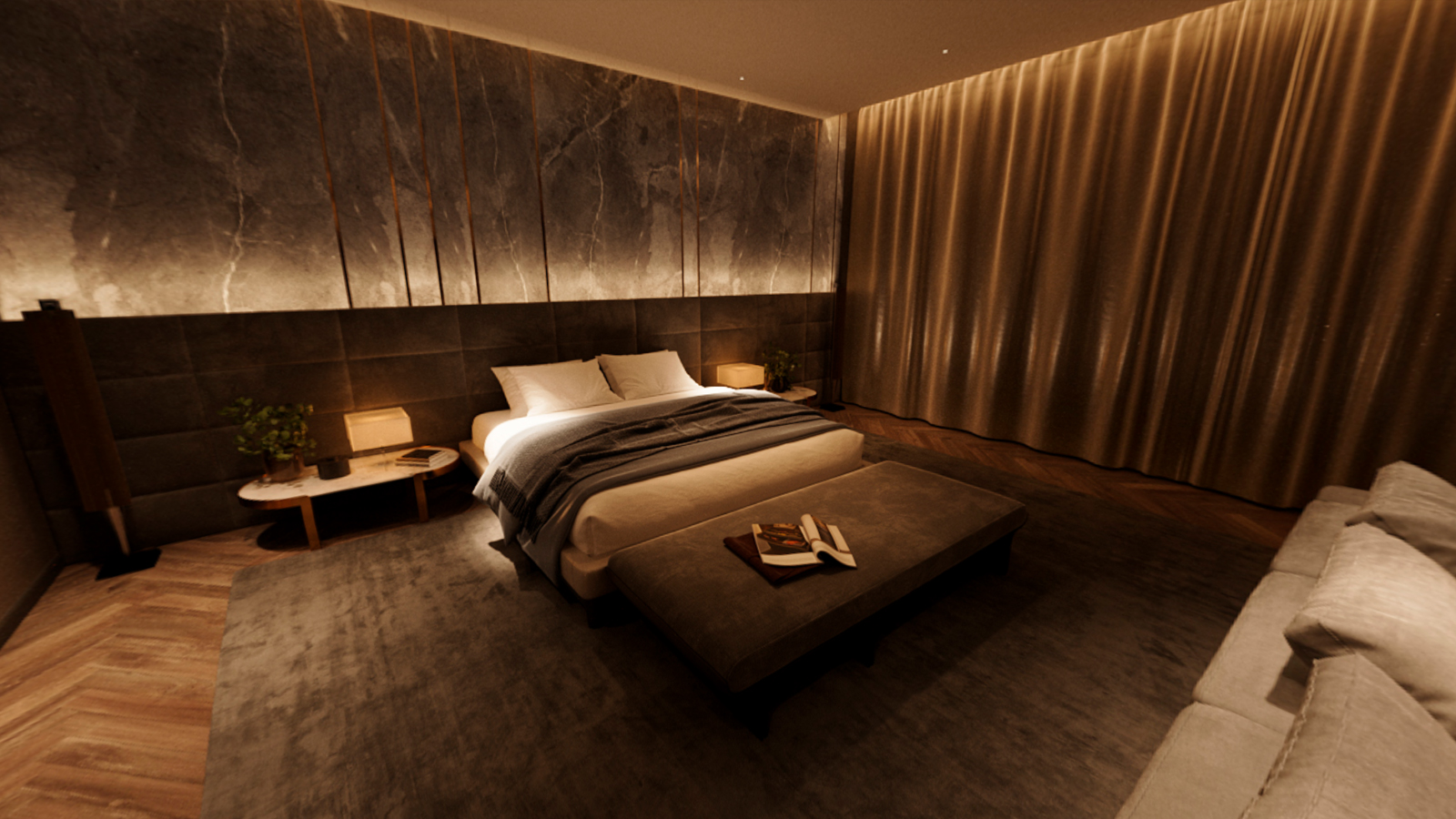

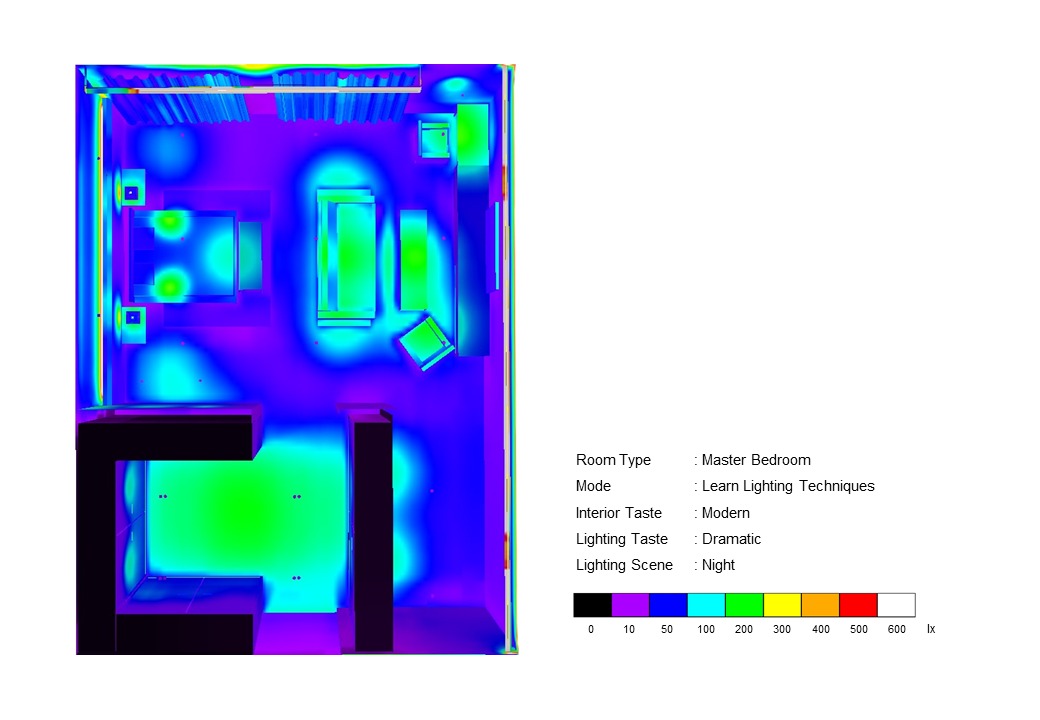

Night

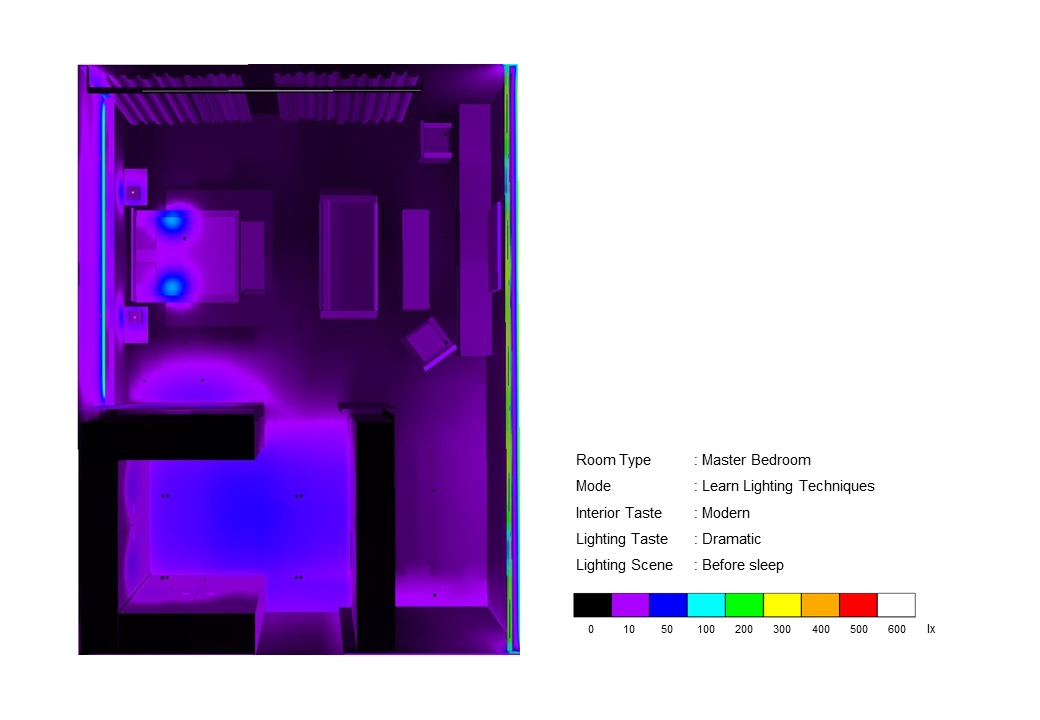

Before sleep
Scene 1 | Scene 2 | Scene 3 | |
|---|---|---|---|
 | 3000K100% | 3000K50% | 3000K |
| 3000K100% | 3000K30% | 3000K |
 | 3000K100% | 3000K50% | 3000K20% |
| 3000K100% | 3000K50% | 3000K |
 | 3000K100% | 3000K50% | 3000K |
 | 3000K | 3000K50% | 3000K30% |
 | 3000K100% | 3000K50% | 3000K10% |
 | 3000K100% | 3000K50% | 3000K10% |
| 3000K | 3000K50% | 3000K |
 | 3000K100% | 3000K50% | 3000K10% |
Lightning Detail
Close
Symbol :Product Code
A･B･E:GERD9867W-T_GRX466N-T
C･D :GERD9397W-T_GRX521N-T
F :GERD9865W-T_GRX466N-T
G :ERX9412S
H･I :ERX9404S
J :GERD9328BA-T_GRX467N-T_GRB841M
Daytime
Night
Beforesleep
Products Used
Close
MINI50 Downlight Fixed/Adjustable Pinhole - GERD9867W-T_GRX466N-T
- Beam Angle : 24°
- Color Temperature : 3000K
- Color Rendering : 83 CRI
- Rated Lumen Output : 497 lm
GLARE-LESS Downlight Fixed/Adjustable Mirror - GERD9397W-T_GRX521N-T
- Beam Angle : 29°
- Color Temperature : 3000K
- Color Rendering : 93 CRI
- Rated Lumen Output : 265 lm
MINI50 Downlight Fixed/Adjustable Pinhole - GERD9865W-T_GRX466N-T
- Beam Angle : 9°
- Color Temperature : 3000K
- Color Rendering : 83 CRI
- Rated Lumen Output : 185 lm
LINEAR17 Indirect light - ERX9412S
- Beam Angle : 31×76°
- Color Temperature : 3000K
- Color Rendering : 82 CRI
- Rated Lumen Output : 1550 lm
LINEAR17 Indirect light - ERX9404S
- Beam Angle : 109 x 110°
- Color Temperature : 3000K
- Color Rendering : 82 CRI
- Rated Lumen Output : 1910 lm
GLARE-LESS Downlight Adjustable Black, Square Frame Option - GERD9328BA-T_GRX467N-T_GRB841M
- Beam Angle : 34°
- Color Temperature : 3000K
- Color Rendering : 83 CRI
- Rated Lumen Output : 702×2 lm
