Bedroom/Learn Lighting Techniques/Flat

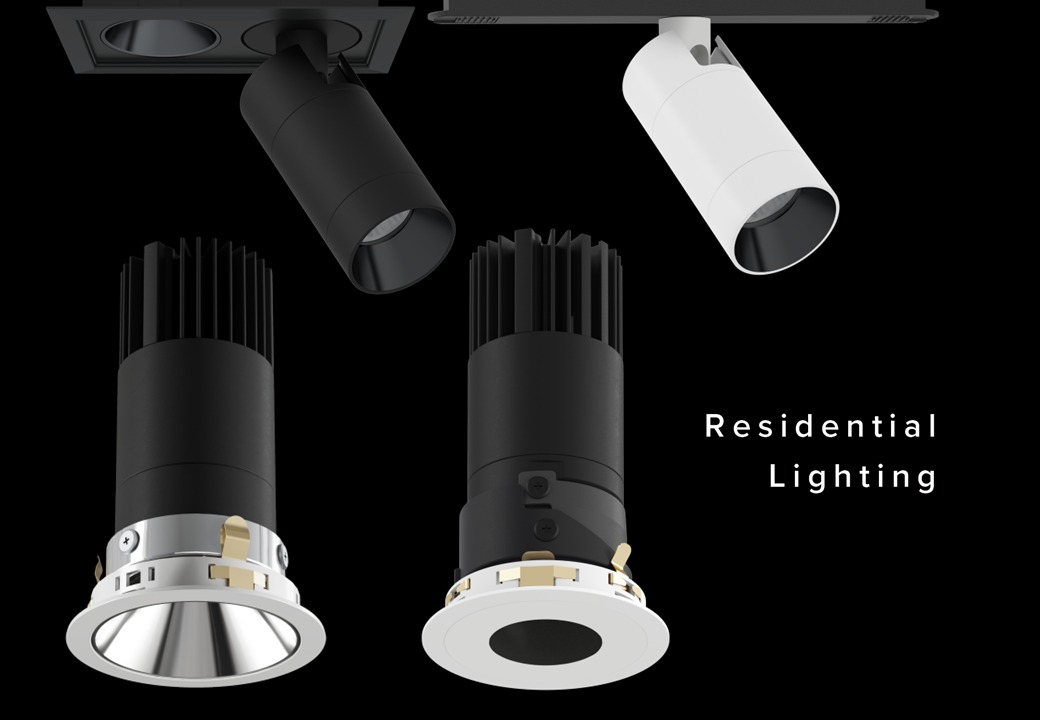

Lightning Concept
Close
Lightning Plan
Close

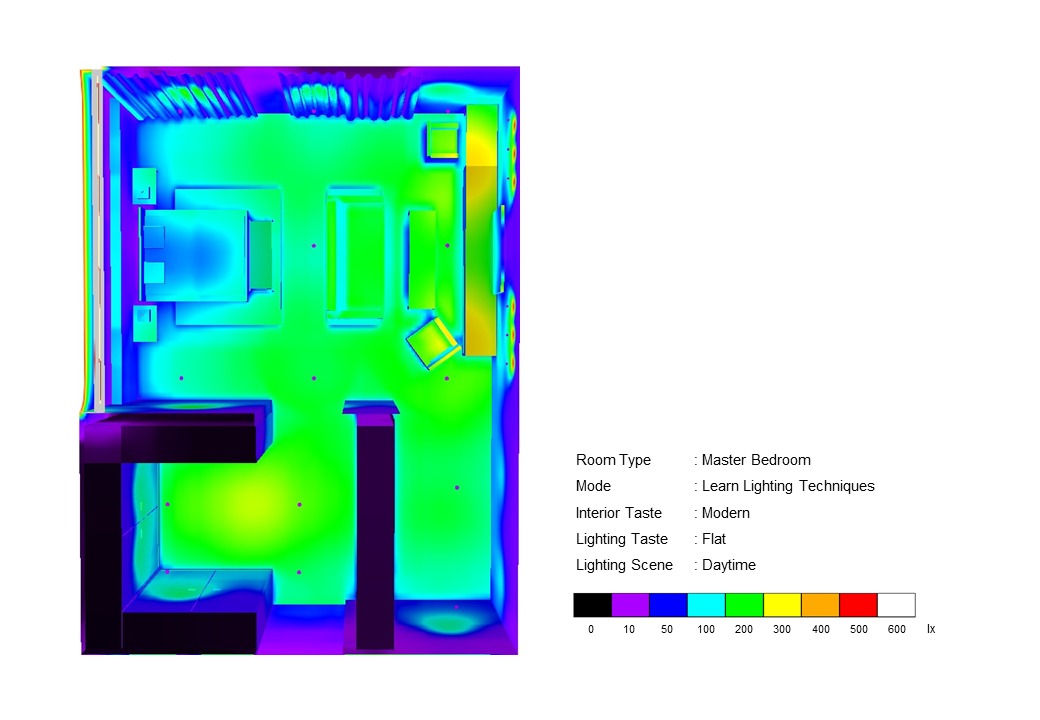

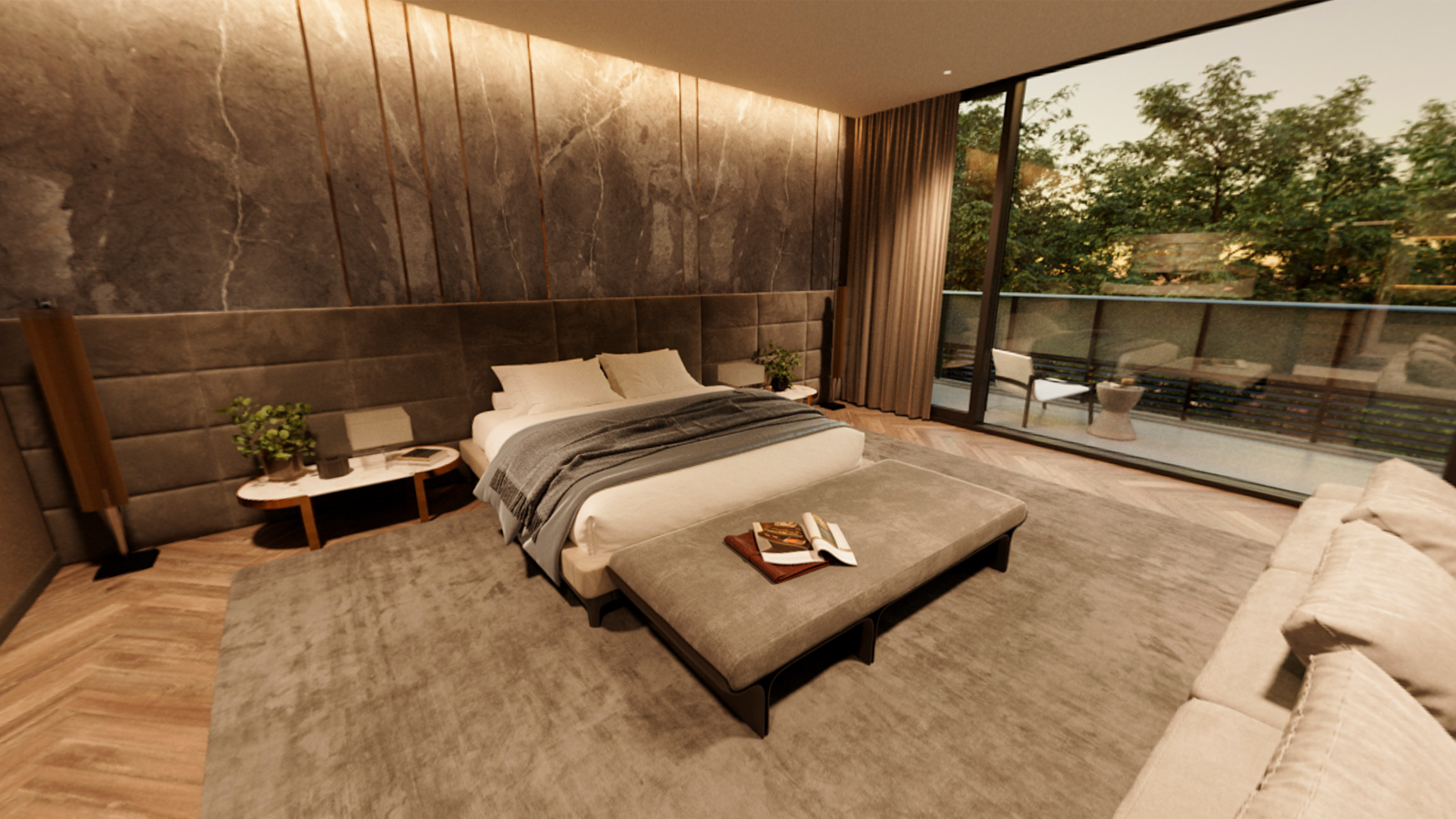

Daytime

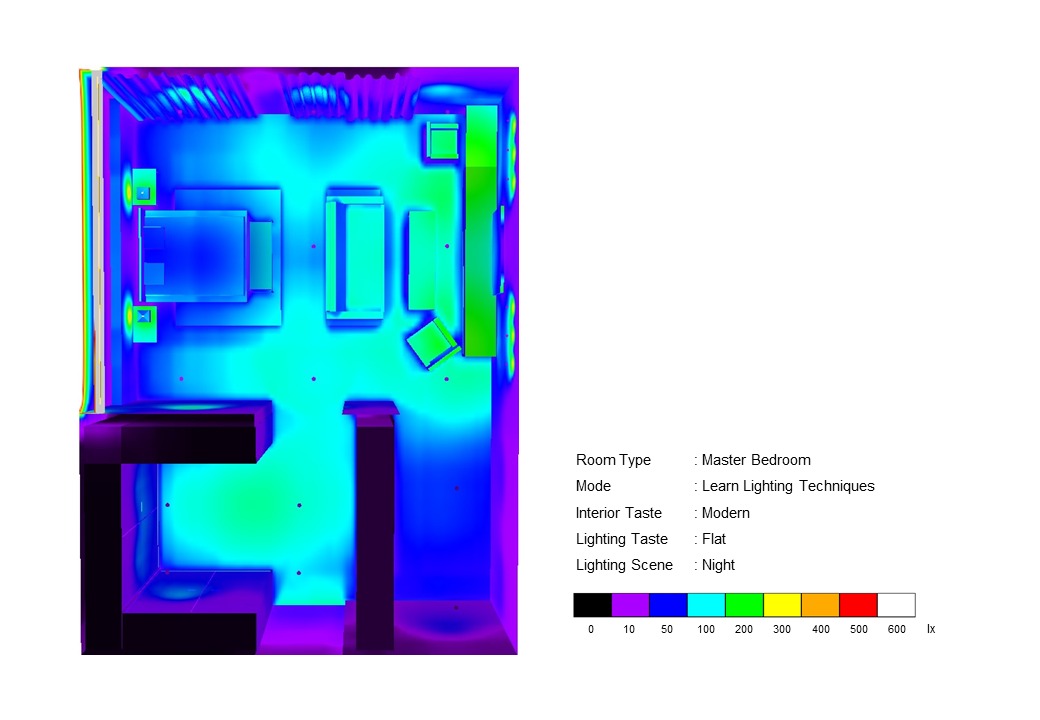

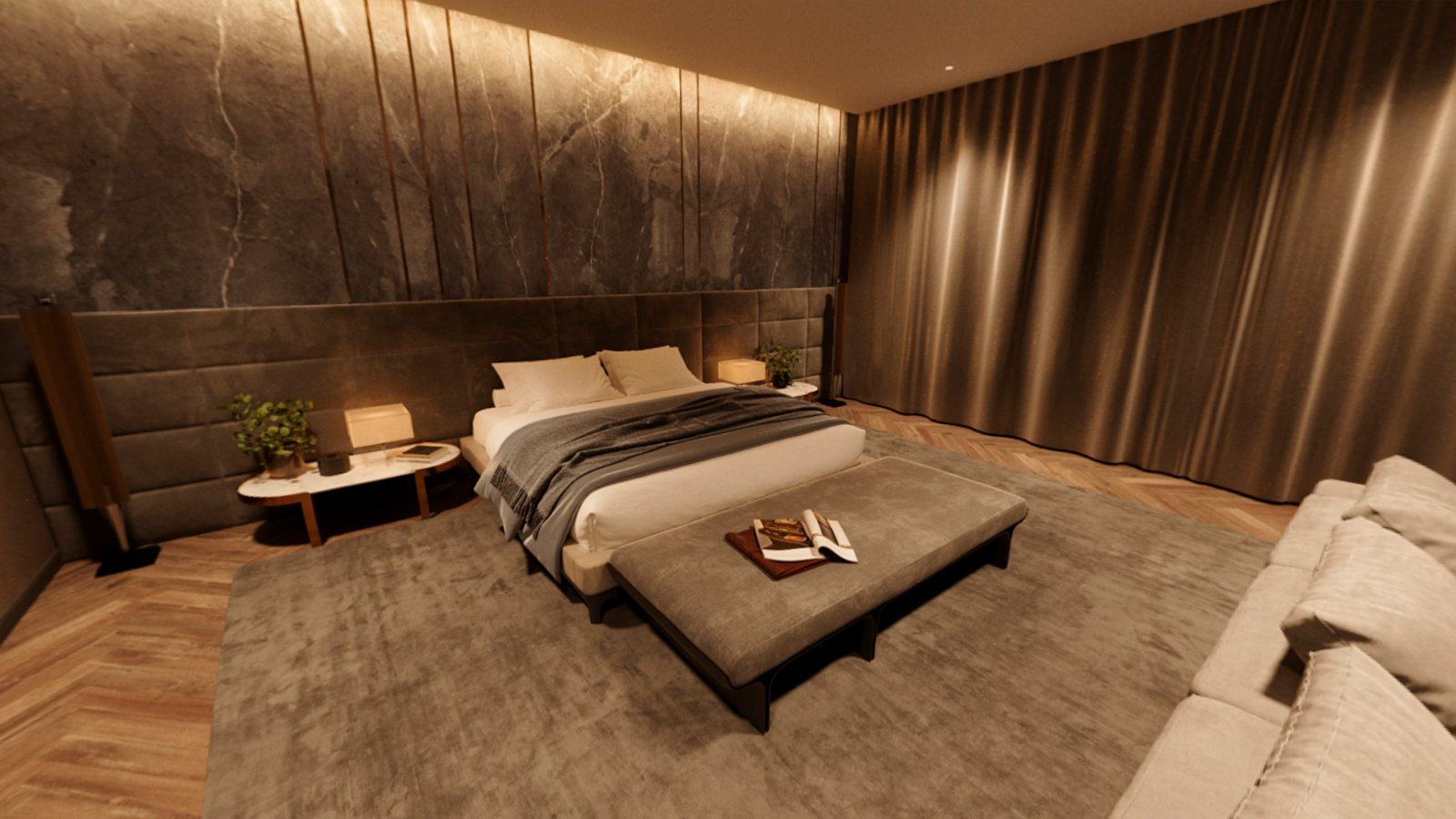

Night

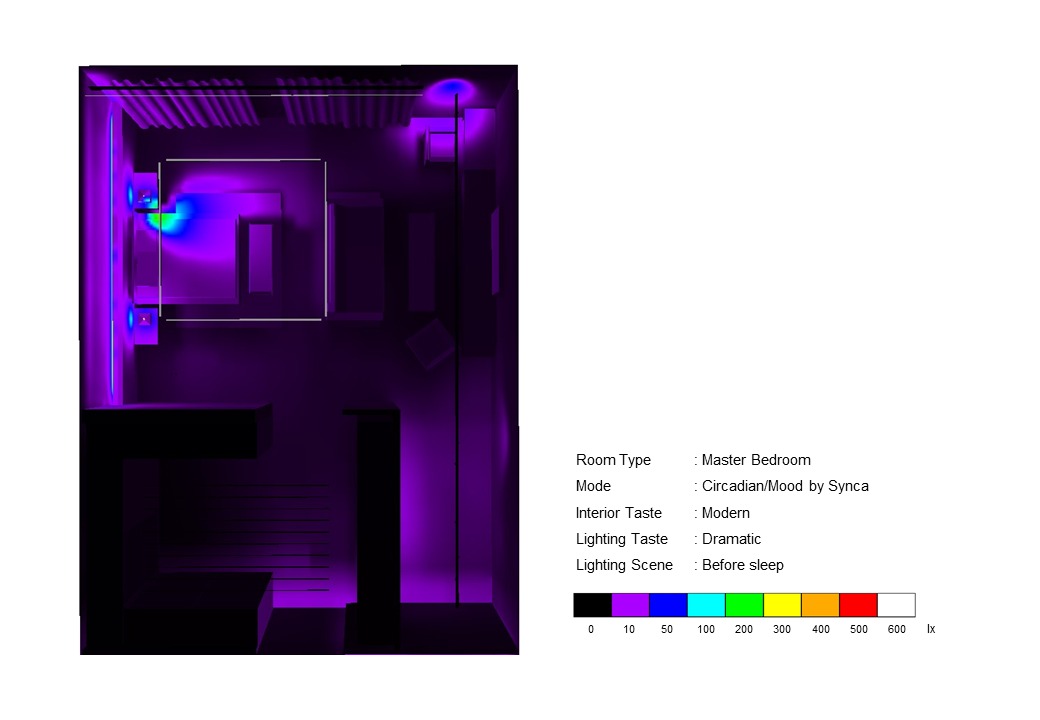

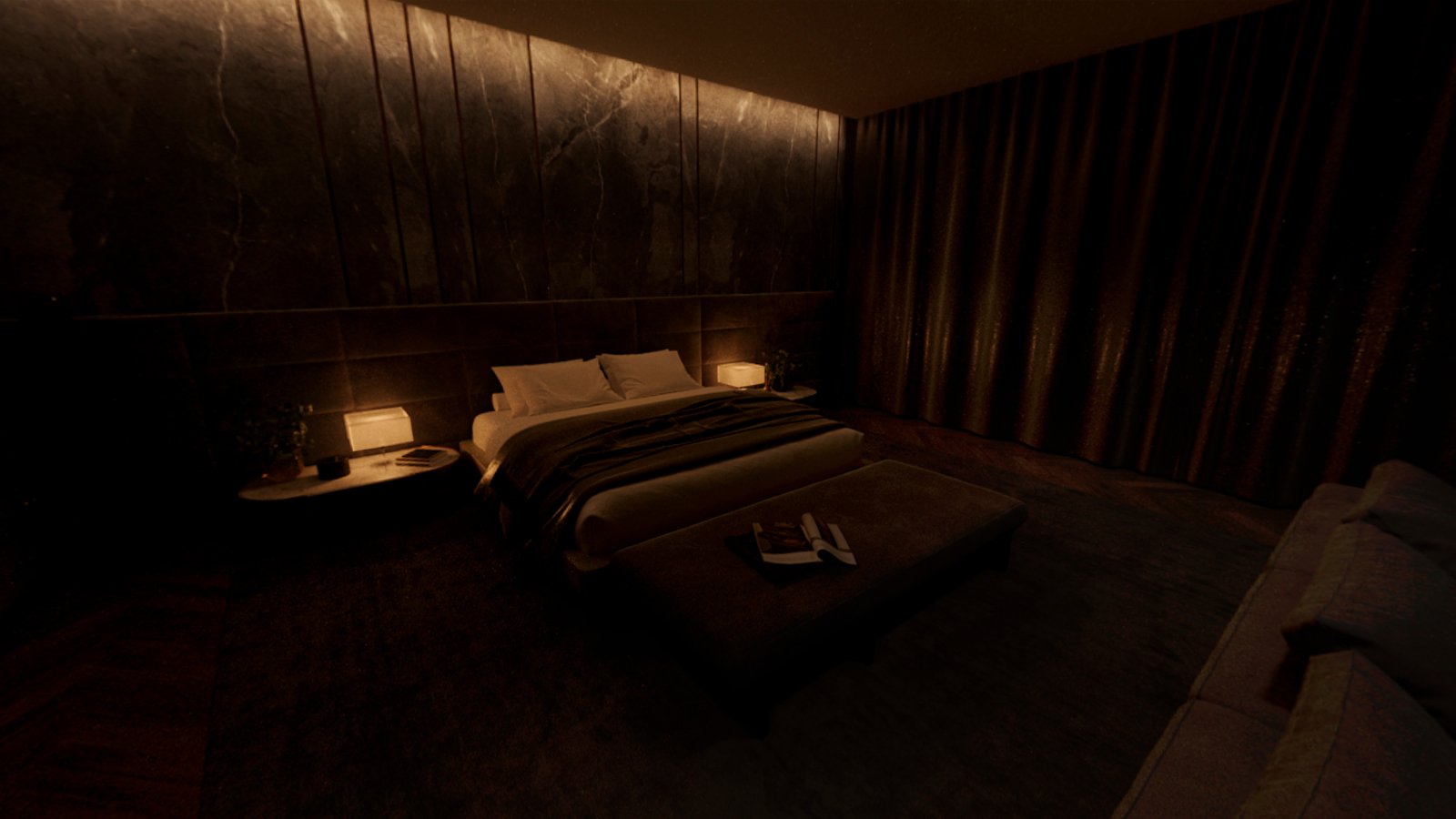

Before sleep
Scene 1 | Scene 2 | Scene 3 | |
|---|---|---|---|
 | 3000K100% | 3000K30% | 3000K |
 | 3000K100% | 3000K70% | 3000K10% |
 | 3000K100% | 3000K30% | 3000K |
 | 3000K100% | 3000K70% | 3000K10% |
 | 3000K100% | 3000K50% | 3000K10% |
 | 2700K70% | 2700K10% | |
| 2700K70% | 2700K10% |
Lightning Detail
Close
:Product Code
A･C･E:GSTDA1002WA-FUW30_GRX466N-T
B :GERD9397W-T_GRX521N-T
D :ERX9388S
Daytime
Night
Beforesleep
Products Used
Close
ACCORD Downlight Fixed White - GSTDA1002WA-FUW30_GRX466N-T
- Beam Angle : 65°
- Color Temperature : 3000K
- Color Rendering : 83 CRI
- Rated Lumen Output : 936 lm
GLARE-LESS Downlight Fixed/Adjustable Mirror - GERD9397W-T_GRX521N-T
- Beam Angle : 29°
- Color Temperature : 3000K
- Color Rendering : 93 CRI
- Rated Lumen Output : 265 lm
LINEAR17 Indirect light - ERX9388S
- Beam Angle : 109×110°
- Color Temperature : 3000K
- Color Rendering : 82 CRI
- Rated Lumen Output : 1527 lm
